Hexagonal Boron Nitride – Cosmetics Grade

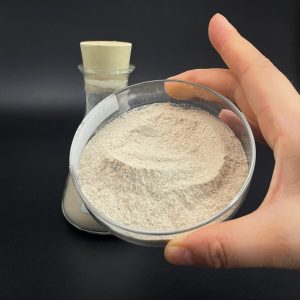

Overview of Hexagonal Boron Nitride BN Powder

Hexagonal Boron Nitride BN Powder, also known as hexagonal boron nitride powder, is an inorganic compound composed of boron and nitrogen elements. Its chemical formula is BN, with a layered crystal structure similar to graphite, where boron and nitrogen atoms alternate in a hexagonal lattice. The Hexagon Boron Nitride BN Powder is famous for its physical and chemical properties, including high hardness, melting point and excellent thermal and chemical stability. This powder can maintain stability in extreme environments and has exceptional thermal conductivity and a low coefficient of thermal expansion. Due to its special structure and properties, the Hexagon Boron Nitride BN Powder has potential application value in multiple fields.

(Hexagonal Boron Nitride BN Powder CAS 10043-11-5)

Features of Hexagonal Boron Nitride BN Powder

Unique crystal structure: The Hexagon Boron Nitride BN Powder has a unique hexagonal layered crystal structure, which gives it excellent physical and chemical properties.

High hardness and strength: The hardness of BN powder is second only to diamond and cubic boron nitride, and it also has high strength, making it an ideal wear-resistant material in many industrial applications.

Excellent thermal stability: BN powder has extremely high thermal stability and can maintain chemical stability in high temperatures, even exceeding 2000 ° C, without thermal decomposition.

Good insulation performance: BN powder is an excellent insulation material that can maintain stable dielectric properties under high temperature, high frequency, and high voltage.

High thermal conductivity: BN powder has a higher thermal conductivity than many other non-metallic materials, making it an efficient heat dissipation material, especially suitable for the heat dissipation of high-temperature electronic devices.

Chemical inertness: BN powder exhibits good chemical inertness towards most chemical substances and solvents, making it less prone to chemical reactions. Therefore, it has broad application prospects in the chemical industry.

Parameter table of Hexagonal Boron Nitride BN Powder

Boron Nitride Properties
Other Names	Boron nitride
CAS No.	10043-11-5
Compound Formula	BN
Molecular Weight	24.82
Appearance	Colorless crystals
Melting Point	2973 °C
Boiling Point	N/A
Density	2.1 g/cm3
Solubility in H2O	insoluble
Electrical Resistivity	13 to 15 10x Ω-m
Poisson’s Ratio	0.1
Specific Heat	840 to 1610 J/kg-K
Thermal Conductivity	29 to 96 W/m-K
Thermal Expansion	0.54 to 18 µm/m-K
Young’s Modulus	14-60 GPa
Exact Mass	25.0124
Monoisotopic Mass	25.0124
Boron Nitride Health & Safety Information
Signal Word	Warning
Hazard Statements	H319-H335
Hazard Codes	Xi
Risk Codes	36/37
Safety Statements	26-36
RTECS Number	ED7800000
Transport Information	N/A
WGK Germany	3

Application of Hexagonal Boron Nitride BN Powder

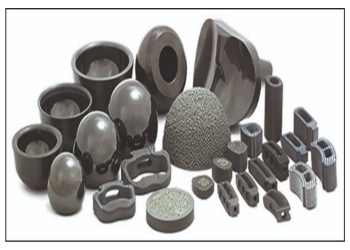

High-temperature ceramic materials: BN powder can be used to manufacture high-temperature ceramic materials, such as ceramic cutting tools, wear-resistant parts, and high-temperature stoves.

In the field of electronics and semiconductors: The high thermal conductivity and insulation properties of BN powder make it an ideal material for the electronics and semiconductor fields and can be used to manufacture heat sinks, insulation layers, and electronic packaging materials.

Composite reinforcement agent: BN powder can be combined with other materials such as polymers, metals, and ceramics to improve the mechanical properties and thermal stability of composite materials and expand their application fields.

Lubrication and coating materials: BN powder has a low friction coefficient and good lubrication performance, which can be used to manufacture lubricants and coating materials and improve the wear resistance and service life of mechanical components.

Catalyst carrier: The chemical stability and high specific surface area of BN powder make it an ideal carrier for catalysts, which can be used to improve their activity and stability.
Optics and Transparent Materials: BN powder has excellent optical features and can be used to produce optical materials such as transparent ceramics, optical windows, and optical fibers.

Application of Hexagonal Boron Nitride BN Powder

Application of Hexagonal Boron Nitride BN Powder

Production Method of Hexagonal Boron Nitride BN Powder

Chemical Vapor Deposition (CVD)

Boron – containing gases like boron trichloride (BCl3​) and nitrogen – containing gases such as ammonia (NH3​) are introduced into a reaction chamber. They react at high temperatures, typically around 1000 – 1500°C. The chemical reaction forms boron nitride on the substrate surface. For example, BCl3​+NH3​→BN+3HCl. This method allows for precise control over the structure and quality of the h – BN powder.

Sol-Gel Method

Boron – containing precursors like boric acid and nitrogen – containing organic compounds are mixed in a solvent. Through hydrolysis and condensation reactions, a gel is formed. The gel is then dried and heat – treated at 800 – 1200°C in an inert or nitrogen – rich atmosphere. This process results in the formation of h – BN powder.

Mechanical Milling

Boron and nitrogen – containing compounds or elements are milled together. High – energy ball milling is used to break and recombine the materials. The mechanical energy during milling promotes the formation of h – BN powder. The process is often carried out in an inert gas atmosphere to prevent oxidation, and it can take several hours to days to obtain the desired product.

Company Profile

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.

The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.

If you are looking for high-quality Hexagonal Boron Nitride BN Powder , please feel free to contact us or click on the needed products to send an inquiry.

Storage Condition of Hexagonal Boron Nitride BN Powder

Hexagonal boron nitride (BN) powder storage requires careful conditions. Store it in airtight containers to prevent moisture absorption, as humidity can affect its properties. A dry environment with relative humidity below 40% is ideal. Keep the powder away from strong acids and alkalis to avoid chemical reactions. Store at room temperature, around 20 – 25°C, to maintain its stability. Avoid areas with high temperatures or direct sunlight, as excessive heat might alter its structure. This way, the high – quality properties of BN powder can be preserved for various applications.

Payment Term

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment Term

By sea, by air, by express, as customers request.

5 FAQs of Hexagonal Boron Nitride BN Powder

Q1

What are the main physical properties of the Hexagon Boron Nitride BN Powder?

Answer : The main physical properties of Hexagon Boron Nitride BN Powder include high hardness, high melting point, good chemical stability, and high thermal stability. This powder has a layered structure similar to graphite, which allows it to remain stable in many extreme environments. In addition, its good thermal conductivity and low coefficient of thermal expansion make it widely used in high-temperature applications and heat dissipation materials.

Q2

What are the applications of Hexagon Boron Nitride BN Powder in?

Answer : The Hexagon Boron Nitride BN Powder has applications in multiple fields. Due to its high hardness, high thermal stability, and good chemical stability, it is used as an abrasive, cutting tool, and coating material. In addition, BN powder is widely used in the fields of electronics and semiconductors, such as in high-temperature electronic devices, heat sinks, and insulation materials. It is also used as a reinforcing agent for ceramics and composite materials, improving the mechanical properties and thermal stability of the materials.

Q3

How to prepare Hexagon Boron Nitride BN Powder?

Answer : There are various methods for preparing Hexagon Boron Nitride BN Powder, with the most common being high-temperature synthesis. This method involves reacting boron and nitrogen compounds at high temperatures to generate BN powder. In addition, there are preparation methods such as vapor deposition, chemical vapor deposition, and solvent thermal method. Accurate control of reaction conditions is required during the preparation process to obtain high-quality BN powder.

Q4

What are the similarities and differences between Hexagon Boron Nitride BN Powder and graphite?

Answer : Hexagon Boron Nitride BN Powder and graphite have certain similarities in structure, both having a layered structure, with strong covalent bonds between atoms within the layers and weak van der Waals interactions between layers. This makes them all possess some similar physical features, such as high hardness, high thermal stability, and good lubricity. However, BN powder differs from graphite in terms of chemical properties. BN powder is a chemically stable material, while graphite is relatively easy to react with certain chemicals. In addition, BN powder has better thermal conductivity than graphite, making it more widely used in high-temperature heat dissipation materials.

Q5

What is the role of Hexagon Boron Nitride BN Powder in composite materials?

Answer : Due to its high hardness, high thermal stability, and good chemical stability, BN powder can be used as a reinforcing agent to enhance the mechanical features and thermal stability of composite materials. In addition, BN powder also has great thermal conductivity, which can effectively boost the thermal conductivity of composite materials, making it widely used in the fields of heat dissipation materials and thermal insulation. BN powder can also increase the wear and corrosion resistance of composite materials and improve the overall performance and service life of composite materials.
