Overview of Aluminum Nitride (AlN) Powder

Aluminum Nitride (AlN) powder is a ceramic product with remarkable thermal and mechanical buildings. It is a non-oxidizing substance that supplies high thermal conductivity, which makes it a vital element in high-performance applications. This powder, with its excellent fragment dimension and pureness, is extensively utilized in industries varying from electronic devices to aerospace.

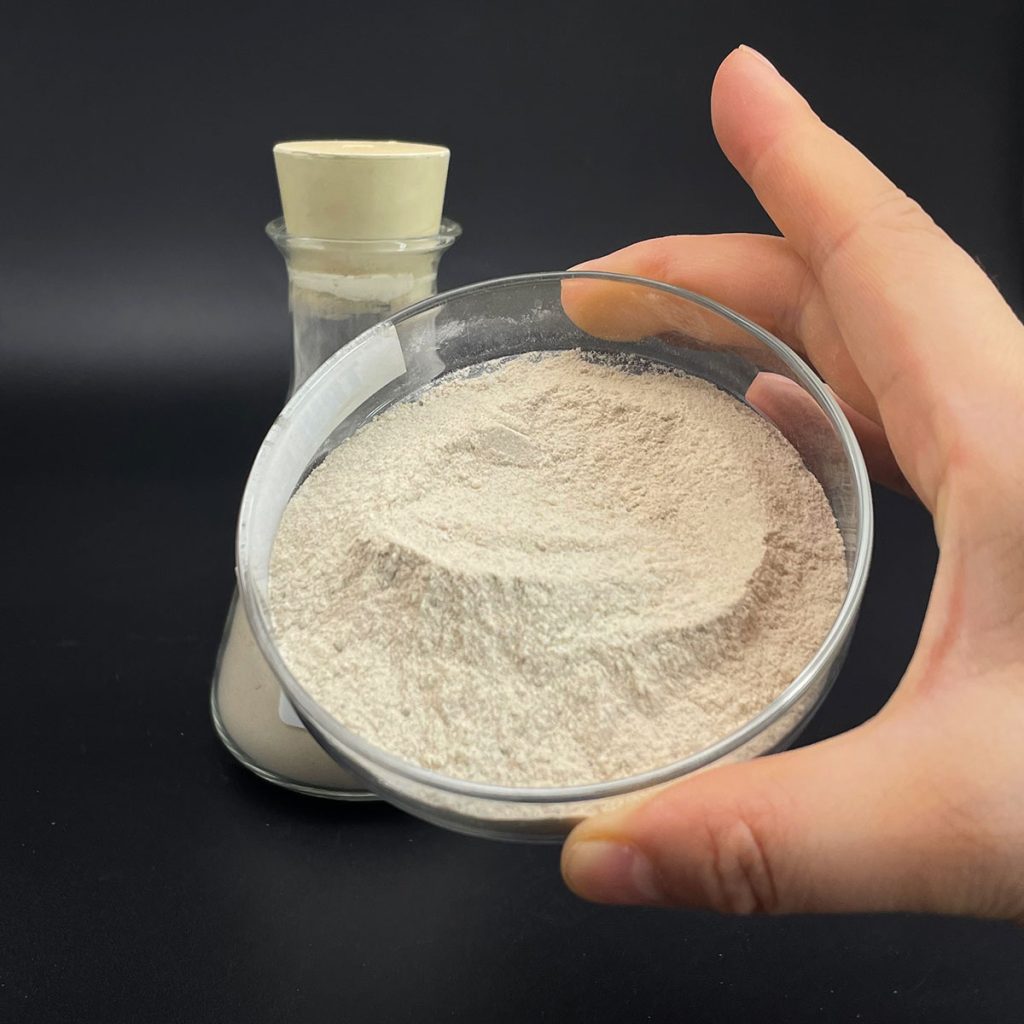

(Aluminum Nitride AlN powder CAS 24304-00-5)

Characteristics of Aluminum Nitride (AlN) Powder

High Thermal Conductivity: AlN powder exhibits excellent thermal conductivity, making it an suitable material for high-temperature applications and heat dissipation in electronic devices.
High Mechanical Strength: This ceramic item shows off high mechanical endurance, suppleness, and make use of resistance, ideal for needing mechanical applications.
Excellent Chemical Stability: AlN powder resists chemical attack, maintaining its properties even in harsh environments.
Good Electrical Properties:Light weight aluminum Nitride provides great electric insulation and dielectric stamina, ideal for usage in electric parts.
Processability: The powder form of AlN allows for easy processing and sintering, facilitating its integration into various materials and components.

Parameter table of Aluminum Nitride (AlN) Powder

Aluminum Nitride Properties
Other Names	Aluminium nitride
CAS No.	24304-00-5
Compound Formula	AlN
Molecular Weight	40.9882
Appearance	White to pale yellow powder
Melting Point	2200 °C
Boiling Point	2517 °C (dec.)
Density	2.9 to 3.3 g/cm3
Solubility in H2O	N/A
Electrical Resistivity	10 to 12 10x Ω-m
Poisson’s Ratio	0.21 to 0.31
Specific Heat	780 J/kg-K
Thermal Conductivity	80 to 200 W/m-K
Thermal Expansion	4.2 to 5.4 µm/m-K
Young’s Modulus	330 GPa
Exact Mass	40.9846
Monoisotopic Mass	40.9846

Aluminum Nitride Health & Safety Information

Remarks	Danger
Hazard Statements	H314-H335
Hazard Codes	Xi
Risk Codes	36/37/38
Safety Statements	26-37/39
RTECS Number	N/A
Transport Information	N/A
WGK Germany	3

Application of Aluminum Nitride (AlN) Powder

Electronics: AlN powder is widely used in electronic packaging and substrates due to its high thermal conductivity and electrical properties.

 Electronics

Aerospace: Its lightweight, high-strength, and thermal stability make it suitable for components in aircraft engines and spacecraft.

 Aerospace

Ceramics Industry: AlN powder is a key ingredient in the production of advanced ceramic components, such as cutting tools and wear parts.

 Ceramics Industry

Optical Applications: Its transparency in the infrared range allows for use in optical windows and lenses.

 Optical Applications

Semiconductors: As a substrate material, AlN powder supports the growth of high-quality semiconductor films.

Semiconductors

 Production Method of Aluminum Nitride (AlN) Powder

Carbothermal Reduction and Nitridation Method

Alumina (Al2​O3​) is mixed with carbon powder. This mixture is heated to 1600 – 1800°C in a nitrogen atmosphere. The carbon reduces the alumina, and the nitrogen reacts with the resulting aluminum species to form AlN powder. The primary reaction can be written as Al2​O3​+3C+N2​→2AlN+3CO.

Chemical Vapor Deposition (CVD)

Gaseous precursors like trimethylaluminum (TMA, Al(CH3​)3​) and ammonia (NH3​) are introduced into a reaction chamber. At temperatures around 1000 – 1200°C, they react. The chemical reaction leads to the deposition of AlN powder. The reaction mechanism involves the decomposition of TMA and the response of aluminum radicals with ammonia-derived nitrogen, e.g., Al(CH3​)3​+NH3​→AlN+3CH4​.

Sol-Gel Method

Aluminum alkoxides and nitrogen-containing compounds are dissolved in a solvent. Through hydrolysis and condensation reactions, a gel is formed. The gel is then dried and calcined at 800 – 1200°C in a nitrogen-rich atmosphere. This process results in the formation of AlN powder.

Company Profile

RBOSCHCO  is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.

The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.

If you are looking for high-quality Aluminum Nitride (AlN) Powder, please feel free to contact us or click on the needed products to send an inquiry.

Storage Condition of Aluminum Nitride (AlN) Powder

Aluminum nitride (AlN) powder storage demands specific conditions. Store it in airtight containers to shield from moisture, as it can react with water, leading to hydrolysis and property degradation. Maintain a dry environment with relative humidity below 40%. Keep away from acidic and alkaline substances to avoid chemical reactions. Room temperature storage, around 20 – 25°C, is suitable; extreme temperatures can impact its stability. Such precautions ensure the integrity of AlN powder for various applications.

Payment Term

L/C, T/T, Western Union, Paypal, Credit Card etc.



Shipment Term

By sea, by air, by express, as customers request.

5 FAQs of Aluminum Nitride (AlN) Powder

Q1:

What are the primary uses of Aluminum Nitride (AlN) Powder?

Re: The main uses Light weight aluminum Nitride (AlN) Powder include its application in electronic devices for warmth dissipation, in the aerospace sector for light-weight and high-strength parts, and in the porcelains market for sophisticated ceramic parts.

Q2:

How does Aluminum Nitride (AlN) Powder maintain its thermal stability?

Re: Aluminum Nitride (AlN) Powder maintains its thermal stability through its strong bonds and lattice structure, which resist thermal expansion and contraction, ensuring consistent performance even under extreme temperature conditions.

Q3:

Is Aluminum Nitride (AlN) Powder easy to process?

Re: Yes, Light Weight Aluminum Nitride (AlN) Powder is fairly simple to procedure as a result of its powder kind and sinterability. It can be formed and sintered right into numerous kinds, such as substratums, elements, and finishings, making use of numerous strategies like pushing and sintering.

Q4:

How does Aluminum Nitride (AlN) Powder differ from other ceramic materials?

Re: Aluminum Nitride (AlN) Powder varies from various other ceramic products in its mix of high thermal conductivity, mechanical toughness, and chemical security. Its distinct buildings make it appropriate for applications that call for both warm dissipation and architectural stability, such as electronic devices and aerospace.

Q5:

Is Aluminum Nitride (AlN) Powder environmentally friendly?

Re: Aluminum Nitride (AlN) Powder is usually thought about eco-friendly. It does not launch hazardous materials throughout its manufacturing, usage, or disposal. Nevertheless, its ecological influence depends upon the particular manufacturing techniques and waste administration techniques utilized. Liable manufacturing and recycling can lessen any type of prospective ecological effects.
