Titanium Clad Nickel Plate Titanuim Nickel Clad Plate

Overview of Titanium Clad Steel Plate

Titanium nickel-clad plate is a cladding material composed of titanium and nickel, with excellent corrosion resistance and high strength. Titanium has high corrosion resistance, but its low strength makes it unsuitable for high-stress areas. As a clad plate, nickel has the advantages of excellent mechanical properties, good corrosion resistance, high strength, easy processing, good electrical conductivity, good wear resistance, and good chemical stability. The titanium nickel-clad plate combines the unique advantages of the two metals. Therefore, it has been widely used in various fields, especially electronics, electric power, construction, transportation, aerospace, etc. romance.



Features of Titanium Clad Steel Plate

Good corrosion resistance: Nickel alloys have very high corrosion resistance to various corrosive media (acid, alkali, salt, seawater, atmosphere, etc.) in the atmosphere, water, steam, mud, and other media, especially alkaline media. Even at high temperatures, they can maintain high corrosion resistance.
High strength: Nickel alloys’ high strength is usually due to the addition of alloying elements, such as copper, iron, manganese, chromium, silicon, magnesium, etc., which can increase the strength of the alloy and maintain high stability.
Good conductivity: Nickel alloy has good conductivity and low resistivity and is widely used in electronics, electric power, aerospace, and other fields.
Good wear resistance: Although the wear resistance of nickel alloy is not as good as that of iron-based alloys, it is still very good, especially under high speed and temperature conditions; it can still maintain high wear resistance.
Good chemical stability: Nickel alloy is stable at high temperatures and can resist corrosion in various media (acid, alkali, salt, etc.).

Parameter table of Titanium Clad Steel Plate

Parameter	Details
Material Composition	Titanium layer + Steel layer (e.g., Ti Gr1/Gr2 + Carbon/Stainless Steel)
Thickness Ratio	Customizable (e.g., 10% Ti + 90% Steel, or other ratios as required)
Density	~4.5 – 7.9 g/cm³ (varies based on thickness ratio)
Tensile Strength	400 – 600 MPa (depends on bonding quality and material grades)
Yield Strength	250 – 500 MPa (varies based on material grades and thickness ratio)
Elongation	15% – 30% (depends on material grades and bonding quality)
Thermal Conductivity	~20 W/m·K (Titanium) + ~50 W/m·K (Steel)
Corrosion Resistance	Excellent (Titanium layer provides superior resistance to acids and chemicals)
Bonding Strength	≥150 MPa (typical for explosion-bonded or roll-bonded clad plates)
Operating Temperature	-200°C to 400°C (-328°F to 752°F) (depends on application)
Applications	Chemical reactors, heat exchangers, marine engineering, and corrosion-resistant equipment.

Applications of Titanium Clad Steel Plate

The application of titanium nickel-clad plate includes but is not limited to the following aspects:

Marine engineering field: Titanium nickel-clad plates can manufacture marine engineering equipment, such as seawater desalination equipment, pipelines for offshore platforms, propellers for ships, etc. These equipment can operate in the marine environment to ensure the reliability and safety of the equipment.

Medical equipment field: Titanium nickel-clad plates can be used to manufacture medical equipment, such as artificial joints, cardiac pacemakers, endoscopes, etc. This equipment can help patients receive better treatment and reduce pain and discomfort.

Aerospace field: Titanium nickel-clad plates can manufacture aerospace equipment, such as aircraft engines, satellite antennas, solar panels, etc. These equipment can operate in extreme environments to ensure the reliability and safety of the equipment.

Electric power field: Titanium nickel-clad plates can manufacture power equipment, such as transformers, cables, etc. These equipment can operate in high-voltage and highly corrosive environments to ensure the reliability and safety of the equipment.

Military field: Titanium nickel-clad plates can manufacture military equipment, such as aero engines, missiles, tanks, etc. This equipment can operate in high temperatures and strong corrosive environments to ensure the reliability and safety of the equipment.

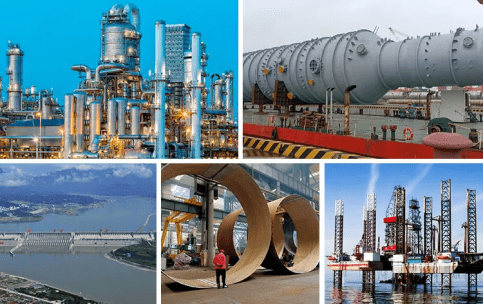

Applications of Titanium Clad Steel Plate

Production Method of Titanium Clad Steel Plate

Titanium-clad steel plates are typically produced using explosion bonding or roll bonding. In explosion bonding, a high-energy explosion forces the titanium and steel layers together under extreme pressure, creating a strong metallurgical bond at the interface. In roll bonding, the metals are heated and passed through rollers under high pressure to achieve bonding. Both techniques call for surface area prep work(cleansing and degreasing) to ensure ideal attachment. Post-bonding, home plates might go through warmth therapy to improve bond toughness and mechanical residential or commercial properties. These techniques make certain outstanding bonding top quality, rust resistance, and architectural stability for commercial applications.

Grade of Titanium Clad Steel Plate

TAI, TA2, TA3, TA8, TA9, TA10, TA18, N4, N6, NCu28-2.5-1,5, NCu30

Standard of Titanium Clad Steel Plate

NB/T47002.3-2009,GBT8547-2006



Company Profile

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.If you are looking for high-quality Titanium Clad Steel Plate, please feel free to contact us or click on the needed products to send an inquiry.

 Storage Condition of Titanium Clad Steel Plate

Titanium-clad steel plates should be stored in a dry, clean, and well-ventilated environment to prevent moisture absorption and corrosion. The ideal storage temperature is between 10°C to 30°C (50°F to 86°F). Avoid exposure to high humidity, direct sunlight, or corrosive substances such as acids, alkalis, or salt spray. Use protective packaging (e.g., VCI film or desiccants) to shield the plates from oxidation and contamination. Store them horizontally on flat racks or pallets to avoid deformation and ensure proper airflow. Regularly inspect for signs of corrosion, especially at the edges or bonding interface. Proper storage ensures the material retains its structural integrity, corrosion resistance, and performance.

Packing of Titanium Clad Steel Plate

We have many different kinds of packing which depend on the quantity.

Payment Methods of Titanium Clad Steel Plate

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment of Titanium Clad Steel Plate

By sea, by air, by express as soon as possible once payment receipt

 5 FAQs of Titanium Clad Steel Plate

Q1

What should we pay attention to during the production process of titanium composite panels?

Answer: During the production process, attention needs to be paid to the quantity of gunpowder and the selection of appropriate gaps to avoid failure to fit or a large number of gaps after explosion. At the same time, explosion welding parameters must also be suitable to avoid problems such as insufficient bonding strength or large-scale melting.

Q2

What are the advantages of titanium composite panels?

Answer: Titanium composite plates have the advantages of light weight, corrosion resistance, high strength, high temperature resistance, wear resistance, fatigue resistance and good self-lubricating properties.

Q3

How to detect the quality of titanium composite panels?

Answer: The bonding status of titanium composite plates can be detected through non-destructive testing technology such as ultrasonic flaw detection, and its performance can also be verified through structural mechanical performance re-examination.

Q4

Under what circumstances might problems arise with titanium composite panels?

Answer: Titanium composite plates may have problems when the temperature is low, improper operation or unsuitable welding parameters, such as cracks, incomplete welding and other quality issues.

Q5

How to deal with microcracks on the surface of titanium composite plates?

Answer: For micro-cracks on the surface of titanium composite plates, they must be cleaned before welding. For small cracks, direct repair welding can be used.
