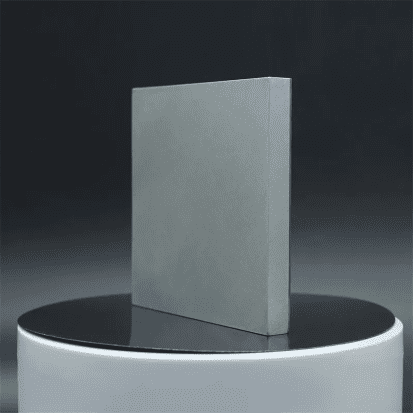

Stainless Steel/Steel Clad Platestainless steel cladding

Overview of Stainless Steel/Steel Clad Plate

Stainless steel/steel clad plate is made of base steel plate and multilayer steel plate as raw materials, and the surface is smooth and flat after polishing and other treatments. The composite layer is firmly bonded, the mechanical properties are good, the compound layer is resistant to the corrosion of atmosphere, acid, alkali and other media, which can meet the corrosion resistance requirements of the side of the structure in contact with the corrosive medium, and the base layer can meet the requirements of the structure for rigidity and weldability.



Feature of Stainless Steel/Steel Clad Plate

Stainless steel/steel clad plate has both multilayer functionality and base layer strength and toughness performance, and Stainless steel/steel clad plate, as a resource-saving product, can reduce precious metal consumption and reduce costs. Attain an ideal balance of affordability and effectiveness while receiving positive societal advantages. Clad steel is typically manufactured using the roll bonding process. Carbon steel and stainless steel form a metallurgical bond during heating and rolling. Hot roll bonding is a commonly used process in our stainless steel-clad plate factory. During this process, clean sheets of carbon steel and stainless steel are placed on each other (single-sided cladding) or sandwiched between two stainless steel sheets (double-sided cladding). The composite sheets are hot rolled together. The stainless steel cladding process results in a bond between the two metals. Another manufacturing method is explosive bonding. The metals bond during the explosion due to the plastic deformation of the intense collision. Hot rolling, followed by explosive bonding, can enhance the adhesion between carbon steel and stainless steel. Composite carbon steels are used in chemical processes, oil refining, offshore oil production, and many other applications. It is also used in generator sets where high temperatures and stress corrosion are present.

Parameter table of Stainless Steel/Steel Clad Plate

Parameter/Specification	Description/Range
Product Name	Stainless Steel Clad Plate
Standards	GB/T 8165, NB/T 47002.1, YB/T 4282, JIS G3601, ASTM A263, ASTM A264, ASME SA263, ASME SA264, etc.
Base Material	Q235, Q355, Q245R, Q345R, 20R, 20G, 16MnR, A36, A516 Gr.60/65/70, A537 Gr.1/2/3, A105, A350 LF1/2/3, A387 Gr.11/12/21/22, A182 F1/11/12/21/22, A266 Gr.1/2/3/4, etc.
Cladding Material	304/304L, 310/310S, 316L, 316H, 316Ti, 321/321H, S31803, S32205, S32507, S32760, 405, 410S, 904L, etc.
Thickness	Base Material: 0.2mm – 500mm; Cladding Material: 0.1mm – 100mm
Dimensions	Maximum Width: 4200mm; Maximum Length: 15000mm; Maximum Area: 50m²
Shape	Rectangular, Square, Circular, or Customized as Required
Number of Layers	Maximum of 11 Layers
Production Methods	Explosion Bonding, Explosion Rolling Bonding, Roll Bonding
Applications	Petroleum Refining, Petrochemical Industry, Machinery, Shipbuilding, Salt and Alkali Production, Brewing, Water Conservancy and Hydropower, Environmental Protection, and Other Fields

Applications of Stainless Steel/Steel Clad Plate

Petrochemical, pressure vessels, Add transmission pipeline, heat exchanger, Vacuum salt production,papermaking,Beer,medicine,food,Waterpower, power station, aerospace and other fields.1. Chemical processing: Equipment exposed to harsh chemicals, such as reactor vessels, piping, and heat exchangers.2. Power generation: Boilers, turbines, and heat exchangers in power plants due to its high resistance to corrosion and high temperature.3. Marine and offshore: Shipbuilding, oil rigs, and other marine structures for corrosion resistance and improved durability in harsh environments.4. Aerospace: Aircraft components, such as engine parts, for its high strength and durability.5. Nuclear: Nuclear reactors and fuel storage containers for its high resistance to radiation and ability to withstand harsh conditions.



Applications of Stainless Steel/Steel Clad Plate

Production Method of  Stainless Steel/Steel Clad Plate

1. Melting & Casting: Mixing raw materials, melting them in a furnace, and casting them into ingots or slabs.
2. Rolling: Heating the ingots/slabs and rolling them into plates.
3. Cladding: Bonding stainless steel to the steel plate via welding, explosion bonding, etc.
4. Finishing: Surface treatment and cutting to final dimensions.

Storage Condition of  Stainless Steel/Steel Clad Plate

Special shelves: To prevent damage, please use specially designed shelves or shelves that can support the weight and size of the cladding panel.
Isolation: ensure cladding panels are stored separately from other materials to avoid scratches, dents, or other physical damage.

Inspection and Maintenance Regular Inspection: Regularly inspect clad plates for signs of corrosion, damage, or deterioration.

Cleaning: If clad plates become dirty or contaminated, clean them using appropriate cleaning agents and methods to remove dirt, grease, or other contaminants without damaging the surface.

Company Profile

RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.If you are looking for high-quality Stainless Steel/Steel Clad Plate, please feel free to contact us or click on the needed products to send an inquiry.



Packing of Stainless Steel/Steel Clad Plate

We have many different kinds of packing which depend on the quantity.

Payment Methods of Stainless Steel/Steel Clad Plate

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment of Stainless Steel/Steel Clad Plate

By sea, by air, by express as soon as possible once payment receipt



5 FAQs of Stainless Steel/Steel Clad Plate

Q1

What are the advantages of stainless steel/steel composite panels compared to single metal materials?

Answer: Stainless steel/steel composite panels combine the corrosion resistance of stainless steel with the high strength of carbon steel, which can resist chemical corrosion and withstand large mechanical loads.

Q2

What is the corrosion resistance of stainless steel/steel composite panels?

Answer: The corrosion resistance of stainless steel/steel composite panels mainly depends on the thickness and type of stainless steel layer. Typically, suppose the stainless steel layer is thick enough and of good quality. In that case, the corrosion resistance of composite panels will be excellent.

Q3

What are the mechanical properties of stainless steel/steel composite panels?

Answer: Stainless steel/steel composite panels combine the advantages of stainless steel and carbon steel, have high strength and toughness, and can meet the needs of various complex engineering structures.

Q4

What should you pay attention to when using stainless steel/steel composite panels?

Answer: During use, care needs to be taken to avoid excessive heating and mechanical damage to maintain good corrosion resistance and mechanical properties. In addition, due to the potential difference between stainless steel and carbon steel, attention also needs to be paid to avoid electrochemical corrosion.

Q5

What is the processing performance of stainless steel/steel composite panels?

Answer: Stainless steel/steel composite panels have good processing performance and can be processed and formed through cutting, bending, welding and other processes. However, due to the combination of the two metals, special process parameters and tools may be required during processing.
