PRODUCT PARAMETERS
Description
Overview of Nb/Steel Refractory Metal Clad Plate
Niobium/steel composite plate is a composite material composed of niobium and steel. Niobium is a rare metal with high strength, high hardness, and high corrosion resistance, and it is widely used in the manufacture of various high-tech equipment and tools. Steel is an essential metal material that has high strength, high toughness, high wear resistance, and excellent performance of the two materials of niobium/steel composite plate, and can be widely used in aerospace, petrochemical, shipbuilding power electronics, and other fields. It is commonly used in machinery, construction, automobile, electronics, and other fields.
Advantage/Characteristics of Nb/Steel Refractory Metal Clad Plate
Niobium/steel composite plate has excellent mechanical properties, such as high specific strength, high tensile strength and high toughness, and can also maintain the high toughness and wear resistance of steel. In addition, the niobium/steel clad plate also has excellent corrosion resistance and can be used in high temperature, high pressure and corrosive media for a long time. Therefore, the niobium/steel-clad plate has become an important material and is widely used in various fields.
Parameter table of Nb/Steel Refractory Metal Clad Plate
| Parameter | Details |
|---|---|
| Material Composition | Niobium layer + Steel layer (e.g., Nb Grade 1/2 + Carbon/Stainless Steel) |
| Thickness Ratio | Customizable (e.g., 10% Nb + 90% Steel, or other ratios as required) |
| Density | ~8.0 – 16.6 g/cm³ (varies based on thickness ratio) |
| Tensile Strength | 400 – 600 MPa (depends on bonding quality and material grades) |
| Yield Strength | 250 – 500 MPa (varies based on material grades and thickness ratio) |
| Elongation | 15% – 30% (depends on material grades and bonding quality) |
| Thermal Conductivity | ~54 W/m·K (Niobium) + ~50 W/m·K (Steel) |
| Corrosion Resistance | Excellent (Niobium layer provides resistance to acids and chemicals) |
| Bonding Strength | ≥150 MPa (typical for explosion-bonded or roll-bonded clad plates) |
| Operating Temperature | -200°C to 400°C (-328°F to 752°F) (depends on application) |
| Applications | Chemical reactors, heat exchangers, acid tanks, and corrosion-resistant equipment. |
Application of Nb/Steel Refractory Metal Clad Plate
Niobium/steel composite plate has excellent mechanical properties and corrosion resistance, so it is widely used in aerospace, petrochemical, shipbuilding, power electronics, and other fields. In the aerospace field, niobium/steel-clad plates are used to manufacture high-temperature structural parts, such as engine nozzles, guides, and combustion chambers. Due to its high temperature and corrosive environment, it needs to have high oxidation resistance and corrosion resistance. Niobium/steel-clad plates can meet these requirements and are, therefore, widely used in these fields. In the petrochemical industry, niobium/steel composite plates are used to manufacture high-temperature pipes, valves, pump casings, and other equipment. These devices need to withstand high temperatures and corrosive media, and the niobium/steel-clad plate has excellent corrosion resistance and high oxidation resistance, which can meet these requirements. In the field of ship manufacturing, niobium/steel composite plates are used to manufacture essential parts such as hulls, plates, sterns, and propellers of ships. These parts need to withstand high pressure and corrosive media, and the niobium/steel-clad plate has excellent corrosion resistance and high strength and toughness, which can meet these requirements.

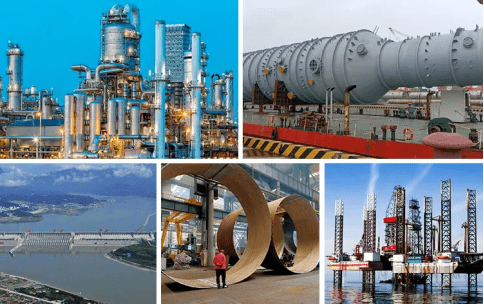

Applications of Nb/Steel Refractory Metal Clad Plate
Grade of Nb/Steel Refractory Metal Clad Plate
The grade of Nb/Steel refractory metal clad plate is Nb&Nb alloy/all kinds of Steel.
Standard of Nb/Steel Refractory Metal Clad Plate
ASTM B898.
Production Method of Nb/Steel Refractory Metal Clad Plate
Niobium/steel clad plates are typically produced using explosion bonding or roll bonding. In explosion bonding, a high-energy explosion forces the niobium and steel layers together under extreme pressure, creating a strong metallurgical bond at the interface. In roll bonding, the metals are heated and passed through rollers under high pressure to achieve bonding. Both techniques need surface area prep work (cleansing and degreasing) to ensure ideal attachment. Post-bonding, home plates might go through warmth therapy to boost bond toughness and mechanical residential or commercial properties. These approaches guarantee exceptional bonding top quality, rust resistance, and architectural stability for commercial applications.
Company Profile
RBOSCHCO is a trusted global chemical material supplier & manufacturer with over 12-year-experience in providing super high-quality chemicals and nanomaterials, including boride powder, nitride powder, graphite powder, sulfide powder, 3D printing powder, etc.The company has a professional technical department and Quality Supervision Department, a well-equipped laboratory, and equipped with advanced testing equipment and after-sales customer service center.If you are looking for high-quality Nb/Steel Refractory Metal Clad Plate, please feel free to contact us or click on the needed products to send an inquiry.
Storage Condition of Nb/Steel Refractory Metal Clad Plate
Niobium/steel-clad plates should be stored in a dry, clean, and well-ventilated environment to prevent moisture absorption and corrosion. Ideal storage temperature is between 10°C to 30°C (50°F to 86°F). Avoid exposure to high humidity, direct sunlight, or corrosive substances such as acids, alkalis, or salt spray. Use protective packaging (e.g., VCI film or desiccants) to shield the plates from oxidation and contamination. Store them horizontally on flat racks or pallets to avoid deformation and ensure proper airflow. Regularly inspect for signs of corrosion, especially at the edges or bonding interface. Proper storage ensures the material retains its structural integrity and performance.
Packing of Nb/Steel Refractory Metal Clad Plate
We have many different kinds of packing which depend on the quantity.
Payment Methods of Nb/Steel Refractory Metal Clad Plate
L/C, T/T, Western Union, Paypal, Credit Card etc.
Shipment of Nb/Steel Refractory Metal Clad Plate
By sea, by air, by express as soon as possible once payment receipt
5 FAQs of Nb/Steel Refractory Metal Clad Plate
Q1
What is the production process of niobium/steel, stainless steel, and refractory metal composite materials?
Answer: The production process may include vacuum smelting, powder metallurgy, hot pressing lamination, welding, etc. These methods are designed to ensure a strong bond between dissimilar metals while maintaining their respective performance characteristics.
Q2
How resistant are these composites to corrosion?
Answer: Both refractory metals and niobium have excellent corrosion resistance, especially in high temperatures and highly corrosive media. Stainless steel is also a corrosion-resistant material, so the corrosion resistance of these composites is often excellent.
Q3
How thermally stable are these composites?
Answer: Both refractory metals and niobium have extremely high melting points and high thermal stability, so these composites can operate at high temperatures for extended periods of time without losing performance.
Q4
What are the mechanical properties of these composites?
Answer: These composites combine the mechanical properties of the component metals and typically have high strength, hardness, good toughness and ductility.
Q5
What should I pay attention to when using these composite materials?
Answer: During use, these composite materials should be protected from excessive mechanical stress, high temperatures and strong corrosive media. In addition, regular inspection and maintenance are required to ensure stable long-term performance.
